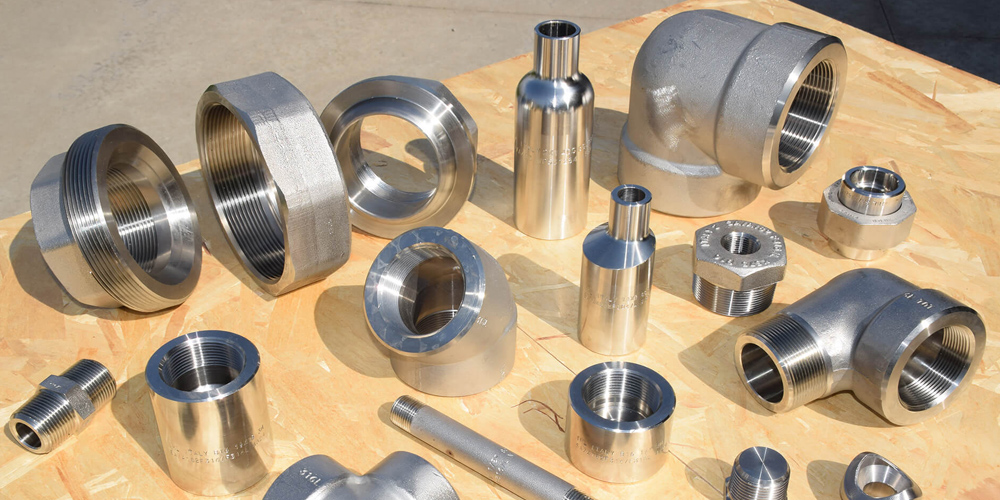

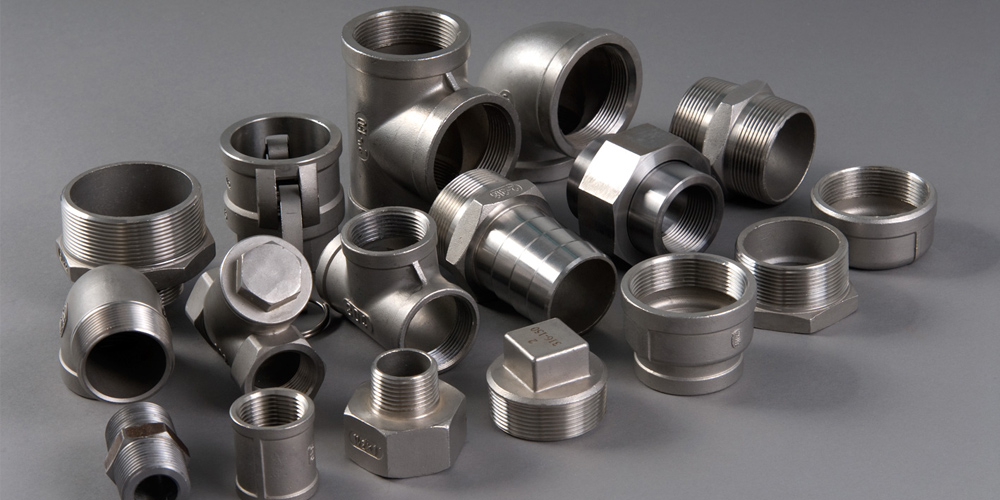

Threaded Forged Fittings


We are one of the leading Manufacturers, Suppliers & Exporters of Forged Fittings in different shapes and sizes and with different specifications as per the customers’ requirement. These Forged Socket weld & Threaded Fittings are characterized by high durability, resistance to corrosion, flawless finish and complete reliability in service. Our complete range is stringently tested by our well equipped testing unit, to ensure their compliance with international quality norms. These Forged Fittings are used in various industries like Oil & gas, Petrochemical, Pharmaceutical, Fertilizers, Construction, Food, Power and Instrumentation.




Stainless Steel Threaded Forged Fittings Specification

Size : 1/2"NB to 4"NB IN

Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Specifications : ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799

Form : 45 deg Elbow, 90 deg Elbow, Tee, Cross, Coupling, Half Coupling, Cap, Hex Nipple etc.

Stainless Steel : ASTM / ASME SA 182 F 202, 304 , 304L , 304H, 309H, 310H , 316 , 316H , 316L , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H, 904L


Carbon & Alloy Steel Threaded Forged Fittings Specification

Size : ½”NB to 48″NB in

Carbon Steel : ASTM A105 / A694 / A350 LF3 / A350 F42 / F46 / F52 / F56 / F60 / F65 / F70, LF2. , A420 WPL3 / A420 WPL6

Alloy Steel : ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91.


Inconel Threaded Forged Fittings Specification

Size : 1/8" TO 4"

Inconel : ASTM / ASME SB 564 / 160 / 472 Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750, Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286


Monel Threaded Forged Fittings Specification

Range : 1/8" TO 4"

Monel : ASTM / ASME SB 564 / 160 / 472 Monel 400 (N04400), Monel 500 (N05500)


Hastelloy Threaded Forged Fittings Specification

Range : 1/8" TO 4"

Hastelloy : ASTM / ASME SB 564 / 160 / 472 Hastelloy C22, Hastelloy C276, Hastelloy C4, Hastelloy B, Hastelloy C-2000


Cupro Nickel Alloy Threaded Forged Fittings Specification

Range : ½”NB to 24”NB in

Cupro Nickel Alloy : ASTM B122, B171, B466, B467 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200,


Nickel Alloy Threaded Forged Fittings Specification

Range : 1/2"NB TO 4"NB IN

Nickel Alloy : ASTM / ASME SB 564 / 160 / 472 Nickel 200 (N02200), Nickel 201 (N02201), Nickel 205 (N02205)


Duplex Steel Threaded Forged Fittings Specification

Range : 1/2"NB TO 4"NB IN

Duplex Steel : ASTM A182 / ASME SA182 F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61.


Super Duplex Steel Threaded Forged Fittings Specification

Size : 1/2"NB TO 4"NB IN(Socketweld & Screwed-Threaded)

Super Duplex Steel : ASTM A182 / ASME SA182 UNS NO. S32750 / S32760 / S32950


Brass Alloy Threaded Forged Fittings Specification

Size : 1/8”- 6”

Working Pressure : 1000 psi

Brass Alloy : Brass CA 360, CA 345 and CA 377 / SAE J530, SAE J531 and ASA


Titanium Alloy Threaded Forged Fittings Specification

Range : 15NB TO 100 NB (DN6~DN100)

Titanium Grades: Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr11,Gr12,Gr23
